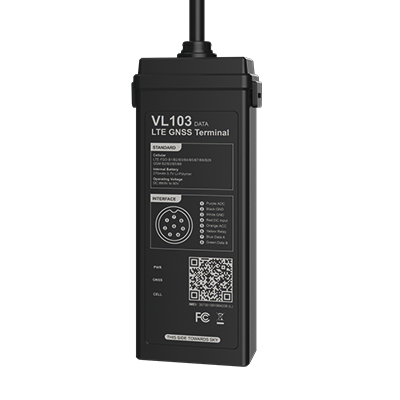

JPCompact size with great power, the VL103D is a discreetly-installed, fully-featured vehicle tracker with LTE, GNSS, RS485 interface and the IP66 waterproof rating. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases, and the wide 9-90V input voltage range is compatible with virtually any vehicle. It is a perfect tracker for a wide range of use cases – stolen vehicle recovery and the management of motorcycles, passenger cars, and light commercial vehicles.
Compact size with great power, the VL103D is a discreetly-installed, fully-featured vehicle tracker with LTE, GNSS, RS485 interface and the IP66 waterproof rating. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases, and the wide 9-90V input voltage range is compatible with virtually any vehicle. It is a perfect tracker for a wide range of use cases – stolen vehicle recovery and the management of motorcycles, passenger cars, and light commercial vehicles.
FEATURES
SPECIFICATIONS
DOWNLOADS
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Configurable Input/Output
Set to alarm button status monitoring by default, also configurable as an extra digital output.
Car Battery Protection
Automatically stop drawing power from the car battery when it drops near the threshold.
IP66 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
RS485 Interface
RS485 interface extends more device usage scenarios.
Driving Behavior Analysis (Basic)
Receive alerts when any of 4 kinds of dangerous driving behavior is detected.
| GNSS | |
| Positioning system | GPS+BDS+LBS |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
| Cellular | |
| Communication network | LTE Cat 1/GSM |
| Frequency | VL103D (L) LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 GSM: B2/B3/B5/B8 VL103D (E) LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 GSM: B2/B3/B5/B8 |
| Power | |
| Battery | 270mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9-90VDC |
| Interface | |
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| SIM | Micro-SIM |
| Digital inputs | ACC |
| Digital outputs | Relay |
| Configurable I/O | SOS (configurable as an extra digital output) |
| ADC | 0-5V ADC detection |
| Physical specification | |
| Dimensions | 92.0 x 40.0 x 20.0mm |
| Weight | 55g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| IP rating | IP66 |
| Feature | |
| Sensors | Accelerometer |
| Scenarios | Vehicle movement alert, Speeding alert, Geo-fence entry/exit, Vehicle battery detection |
| Driving behavior analysis | Harsh acceleration, Harsh braking, Harsh cornering, Collision |
* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
