The VG102 is a compact 2G tracking terminal that is best suited for use in the two-wheeler mortgage business. It has a built-in GNSS module that supports GPS and BDS to determine the location of a motorcycle in real time and a built-in relay that allows the fleet manager or owner to remotely cut off the fuel supply to the motorcycle if an exception occurs. It also offers features such as automatic power disconnection when the motorcycle’s battery drops to a critical level. When an adapter cable compatible with your motorcycle is used, the VG102 can be a plug-and-track terminal without the hassle of wire cutting or other complicated steps.
FEATURES
SPECIFICATIONS
DOWNLOADS
Plug-and-Track Design (Optional)
An adapter cable with compatible interfaces to mate with these on the vehicle for effortless and damage-free installation. Such a design is readily available for Honda Beat 110cc, Honda Vario 150cc, Honda Scoopy, Honda PCX 160cc, Yamaha Mio 125cc, and Yamaha Fazzio 125cc.
Tip-Over Alert
Send instant notifications to the owner and fleet manager if the vehicle is tipped over to the side.
Vehicle Battery Protection
Disconnect from the vehicle's power supply and operate on its internal battery when the device detects the vehicle battery drops to a critical level.
IP66 Water & Dust Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Customizable Connector
Allow businesses to customize the connector on the device cable to be compatible with specific vehicle makes and models.
External Buzzer Support
Warn the driver once the tracker detects any exception like speeding or give out audible warning to indicate a vehicle's whereabouts.
| GNSS | |
| Positioning system | GPS/BDS/GLONASS |
| Frequency | L1/B1 |
| Positioning accuracy | < 2.5m CEP |
| Tracking sensitivity | –165dBm |
| Acquisition sensitivity | –148dBm |
| TTFF (open sky) | Avg. hot start ≤ 2sec |
| Avg. cold start ≤ 38sec | |
| Cellular | |
| Communication network | 2G |
| Frequency | GSM 850/900/1800/1900MHz |
| Power | |
| Battery | 270mAh/3.7V industrial-grade Li-Polymer battery |
| Standby current | ≤ 5mA |
| Input voltage | 9–30VDC |
| Interface | |
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| SIM | Nano-SIM |
| Data storage | 32+32Mb |
| Physical specification | |
| Dimensions | 92 x 28 x 14mm |
| Weight | 40.7g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| Operating humidity | 5% to 95%, non-condensing |
| IP rating | IP66 |
| Feature | |
| Sensors | Accelerometer |
| Scenarios | Tip-over alert, Vibrating alert, Speed alert, SOS call, Tamper alert, Geo-fence entry/exit alert, Vehicle battery protection, Remote immobilization, Power disconnection alert, Low internal battery alert |
| Compatibility | Readily available plug-and-track adapter cables for Honda Beat 110cc, Honda Vario 150cc, Honda Scoopy, Honda PCX 160cc, Yamaha Mio 125cc, and Yamaha Fazzio 125cc |
* We reserve the right to the final interpretation for this product. All information is for reference only and is subject to change without further notice.
APPLICATIONS
Two-Wheeler Mortgage
Two-Wheeler Leasing
Motorcycle Dealers
APPLICATIONS
Two-Wheeler Mortgage
Two-Wheeler Leasing
Motorcycle Dealers

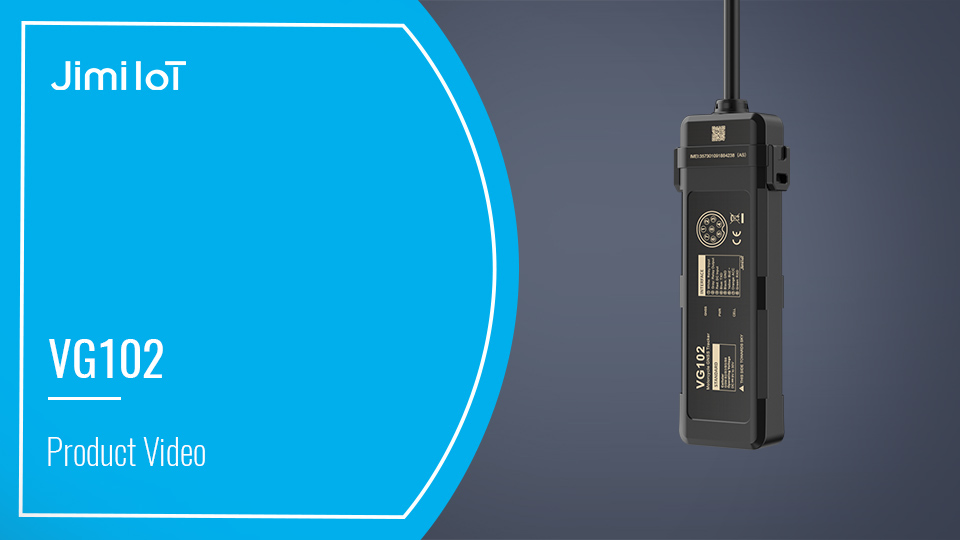

VIDEO
