JPSmall volume, compact structure, the Qbit M is an advanced portable tracker designed to handle the personal security of the elderly, children and vulnerable people. With LTE-M communication and GNSS positioning technology, the device ensures a solid connection and accurate positioning in almost all cases. Furthermore, various accessories, a safety fence and a sound alarm will add to the security and peace-of-mind provided by the Qbit M.
Small volume, compact structure, the Qbit M is an advanced portable tracker designed to handle the personal security of the elderly, children and vulnerable people. With LTE-M communication and GNSS positioning technology, the device ensures a solid connection and accurate positioning in almost all cases. Furthermore, various accessories, a safety fence and a sound alarm will add to the security and peace-of-mind provided by the Qbit M.
FEATURES
SPECIFICATIONS
DOWNLOADS
Intelligent Positioning
With GNSS and nRF cellular positioning (optional) for indoor & outdoor signal coverage, the device can send notifications and upload locations based on moving states.
Time-Phased Working
Support setting the device's working hours and sleeping hours on demand.
Compact Size
Small and light, yet with a long standby time, the device is easy to carry.
Panic Button
Press the device's panic button to send an immediate alert and real-time location for emergency help or rescue.
Sound Alarm
Make the device sound an alarm through the APP command to find the specific vehicle or person.
Safety Fence
Geofencing (connected to WiFi hotspots), used with real-time location services, can notify users via the APP if a device leaves a designated area.
| GNSS | |
| Positioning system | GPS+QZSS (nRF*) |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -155dBm |
| Acquisition sensitivity | -147dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤36sec |
| Cellular | |
| Communication network | LTE-M Cat M1 & Cat NB |
| Frequency | Cat-M1: B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B66
Cat-NB1/NB2: B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66 |
| Power | |
| Battery | 650mAh/3.8V industrial-grade Li-Polymer battery |
| Working modes | Intelligent mode; Regular GPS mode |
| Standby time | Up to 7 days in Intelligent mode, 2 hours moving per day (180s locate interval in movement) |
| Interface | |
| SIM | Nano-SIM (or soft SIM) |
| Button | 1 functional button, 1 panic button |
| Physical specification | |
| Dimensions | 40.0 x 45.0 x 15.0mm |
| Weight | 30.5g |
| Operating environment | |
| Operating temperature | –20℃ to +75℃ |
| Operating humidity | 5%～95%, non-condensing |
| IP rating | IP65 |
| Feature | |
| Sensors | Accelerometer |
| Scenarios | Safety fence exit alert, Buzzer alert, Low battery alert |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
APPLICATIONS
Personal Safety
Pet Tracking
Package Tracking
APPLICATIONS
Personal Safety
Pet Tracking
Package Tracking

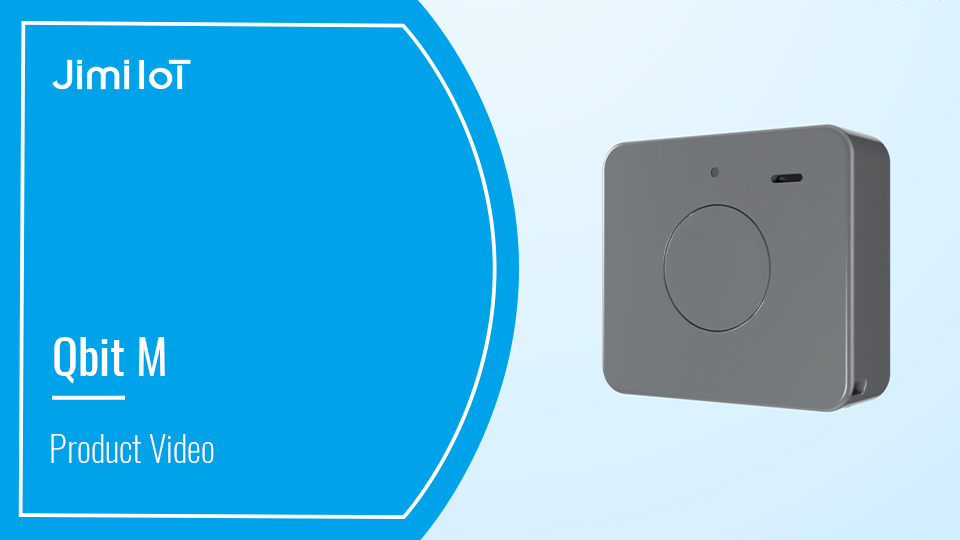

VIDEO
