JPThe LL702 is a wireless GPS tracker designed for ultra-long operation and easy installation. The 4,200mAh battery allows it to operate for more than 3 years in default mode, that is, one position fix a day. The compact size and the strong magnet enable it to be installed hidden in vehicles, equipment, and other valuables securely. It pinpoints the locations of these assets accurately using satellites (GPS/BDS) and base stations. Other features include tamper alert, low battery alert, geofence alert, multiple working modes, and more, making it suitable to be used in various tracking scenarios to keep your asset safe and give you peace of mind.
The LL702 is a wireless GPS tracker designed for ultra-long operation and easy installation. The 4,200mAh battery allows it to operate for more than 3 years in default mode, that is, one position fix a day. The compact size and the strong magnet enable it to be installed hidden in vehicles, equipment, and other valuables securely. It pinpoints the locations of these assets accurately using satellites (GPS/BDS) and base stations. Other features include tamper alert, low battery alert, geofence alert, multiple working modes, and more, making it suitable to be used in various tracking scenarios to keep your asset safe and give you peace of mind.
FEATURES
SPECIFICATIONS
DOWNLOADS
GPS & BDS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Tamper Alert
Receive a tamper alert when the light sensor detects device removal.
Multiple Working Modes
Configurable working modes according to your actual demands.
Strong Magnetic Base
Near-zero installation; the LL702 tightly and effortlessly fastens to most metal surfaces.
Multiple Alerts
Instant alerts for atypical events such as geo-fence entry/exit, abnormal vibration, low battery, device fall/removal, etc.
| GNSS | |
| Positioning system | GPS+BDS+LBS |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | –165dBm |
| Acquisition sensitivity | –148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
| Cellular | |
| Communication network | LTE Cat 1/GSM |
| Frequency | LL702-E: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 LL702-L: |
| Power | |
| Battery | 4,200mAh/3.0V industrial-grade Li-Manganese battery |
| Working modes | Mode 1: Tracking mode Mode 2: Power-Saving mode Mode 3: Week-based mode Mode 4: Alarm-based mode |
| Standby time | Up to 3 years (one fix per day) |
| Interface | |
| LED indication | Cellular (Green) |
| SIM | Nano-SIM |
| Data storage | 32+32Mb |
| Tamper proof | Light sensor |
| Physical specification | |
| Dimensions | 80.0 x 45.0 x 31.4mm |
| Weight | 145g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| Feature | |
| Sensors | Light sensor, accelerometer |
| Scenarios | Tamper alert, low battery alert, geo-fence alert |
| Specialties | Additional fixes (generated in cellular blind spots) upload upon cellular reconnection |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
APPLICATIONS
Car Rental
Auto Finance
Used Car Business
APPLICATIONS
Car Rental
Auto Finance
Used Car Business

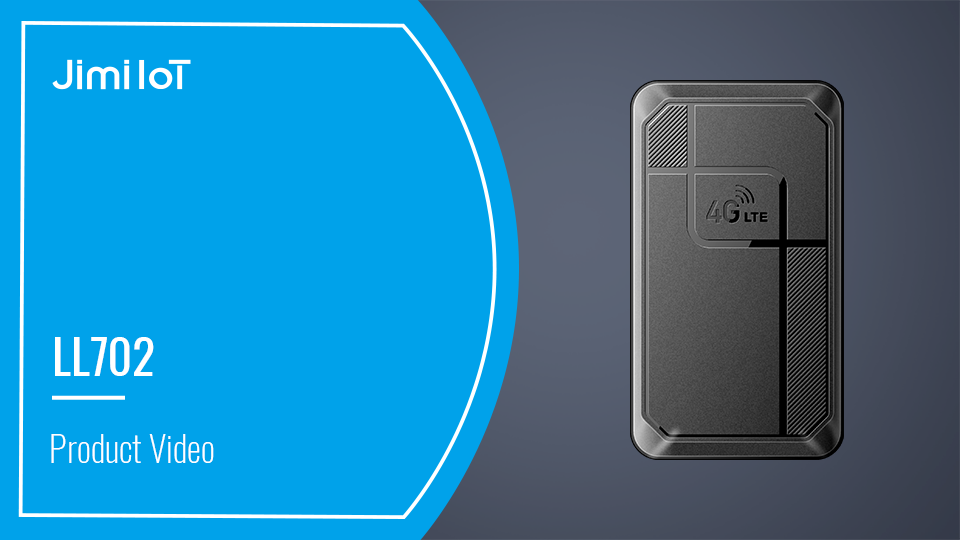

VIDEO
