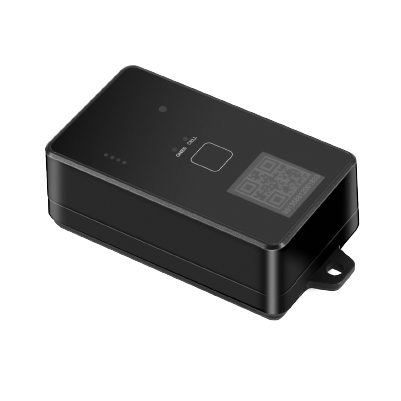

JPThe LL701 is a Long-Standby Asset Tracker designed for the management of heavy-duty vehicles. Using the CR123A battery allows for more availability and better portability, and the replaceable battery design can help fleet managers effectively reduce fleet maintenance costs. Depending on reporting frequency, its low consumption can provide up to 5 years of working time on 3 batteries, while it also supports an external power supply for longer working life. In addition to these features, the IP67 waterproof rating and the suite of event-triggered alerts will make the LL701 a perfect solution for non-real-time tracking of heavy-duty vehicles, goods and other assets.
The LL701 is a Long-Standby Asset Tracker designed for the management of heavy-duty vehicles. Using the CR123A battery allows for more availability and better portability, and the replaceable battery design can help fleet managers effectively reduce fleet maintenance costs. Depending on reporting frequency, its low consumption can provide up to 5 years of working time on 3 batteries, while it also supports an external power supply for longer working life. In addition to these features, the IP67 waterproof rating and the suite of event-triggered alerts will make the LL701 a perfect solution for non-real-time tracking of heavy-duty vehicles, goods and other assets.
FEATURES
SPECIFICATIONS
DOWNLOADS
Ultra-Long Standby
Low location reporting frequency allows for standby times up to 5 years.
Tamper Alert
Receive a tamper alert when the light sensor detects device removal.
Replaceable Battery
CR123A battery offers the user much better portability and ease of installation.
Movement Detection
Send instant notifications to the driver or fleet manager when the device detects that the status of the asset under tracking changes from stationary to moving (vice versa).
Unpacking Alert
Light sensor will be triggered and send an alert when the package has been unpacked.
IP67 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Bluetooth Configuration
Fast and simple device configuration via app for iOS.
Multiple Working Modes
Configurable working modes according to your actual demands.
| GNSS | |
| Positioning system | GPS+QZSS, LBS assisted (optional) |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | –155dBm |
| Acquisition sensitivity | –145.5 dBm (cold) / –147.0 dBm (hot) |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤36sec |
| Cellular | |
| Communication network | LTE-M Cat-M1 & NB/NB2 |
| Frequency | Cat-M1: B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B66 Cat-NB1/NB2: B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66 |
| Power | |
| Battery | CR123A Lithium battery |
| Working modes | Mode 2: Power-saving mode Mode 3: Regular GPS mode Mode 4: Intelligent positioning mode |
| Standby time | Up to 5 years (one GPS fix per day) |
| Interface | |
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| SIM | Micro-SIM |
| Tamper proof | Light sensor |
| Physical specification | |
| Dimensions | 110.2 x 53.0 x 34.5mm |
| Weight | 84.8g (without battery) |
| Operating environment | |
| Operating temperature | –20℃ to +60℃ |
| IP rating | IP67 |
| Feature | |
| Sensors | Light sensor, accelerometer |
| Bluetooth | Support BLE 5.0 protocol |
| Geo-fence | GNSS/Bluetooth |
| Scenarios | Tamper alert, Installation alert, Geo-fence entry/exit alert, Unpacking alert |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
