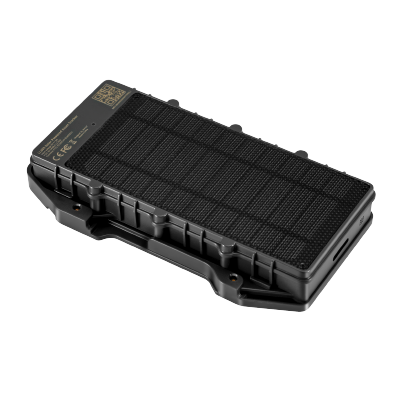

JPThe LL303 is a 4G solar-powered GPS tracker designed for the management of construction vehicles and vessels. Featuring the solar panel, magnetic charger, and IP67 waterproof rating, this device is ideal for a variety of deployments that require long standby time and continued optimal performance. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. In addition to these features, multiple working modes, various peripheral accessories and the suite of event-triggered alerts will make the LL303 a valuable part of your fleet management strategy.
The LL303 is a 4G solar-powered GPS tracker designed for the management of construction vehicles and vessels. Featuring the solar panel, magnetic charger, and IP67 waterproof rating, this device is ideal for a variety of deployments that require long standby time and continued optimal performance. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. In addition to these features, multiple working modes, various peripheral accessories and the suite of event-triggered alerts will make the LL303 a valuable part of your fleet management strategy.
FEATURES
SPECIFICATIONS
DOWNLOADS
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
GPS & BDS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
Solar & Magnetic Charging
Easy charging via the solar panel and magnetic charger.
IP67 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Multiple Alerts
Instant alerts for atypical events such as device removal, abnormal vibration, abnormal temperature & humidity, etc.
Multiple Working Modes
Configurable working modes according to your actual demands.
Bluetooth Accessory Compatibility (Optional)
Various bluetooth peripheral accessories allow for monitoring of fuel consumption, door status, etc.
RFID Reader (Optional)
Access the information of devices via the active RFID.
| GNSS | |
| Positioning system | GPS+BDS+LBS |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
| Cellular | |
| Communication network | LTE Cat 1/GSM; LTE Cat M1/Cat NB2 |
| Frequency | LL303-L LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD: B40 GSM: B2/B3/B5/B8LL303-E LTE-FDD: B1/B3/B5//B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 LL303-A |
| Power | |
| Battery | 10,000mAh/3.7V industrial-grade Li-Polymer battery |
| Solar power | 5V/400mA (Standard Operating Voltage/Current @STC) STC: Direct illumination with 38,000lux halogen lamp on the test bench. |
| Magnetic charger | 5V/2A |
| Working modes | Mode 1: Timing positioning mode Mode 2: Intelligent positioning mode Mode 3: Battery saving mode |
| Standby time | Up to 2 years in battery saving mode |
| Interface | |
| LED indication | Cellular (Green), Power (Red) |
| SIM | Nano-SIM |
| Tamper proof | Hall effect sensor |
| Physical specification | |
| Dimensions | 203x122x33mm |
| Weight | 548g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| Operating humidity | 5%～95%, non-condensing |
| IP rating | IP67 |
| Feature | |
| Sensors | Accelerometer, Hall effect sensor |
| Scenarios | Low battery alert, Tamper alert, Vibrating Alert |
| Bluetooth | BLE 5.0 |
| RFID | 2.4GHz |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
