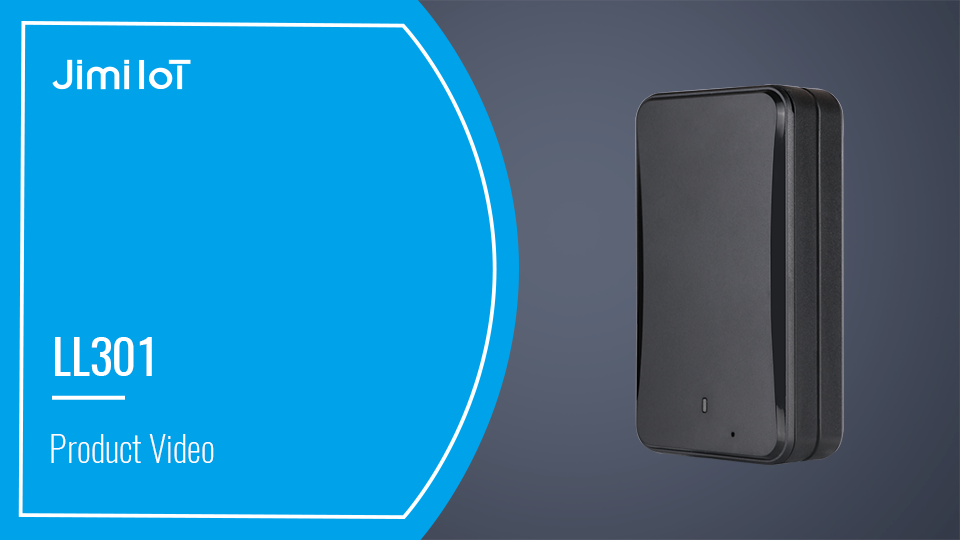

The LL301 is a 4G Cat 1 Asset GPS Tracker that allows for ultra-long standby time via 10,000mAh large-capacity battery and durable housing. Featuring the multiple positioning systems and indoor & outdoor signal coverage, the device also supports instant alerts of atypical events like device removal, vibration, etc. We also offer the users remote monitoring of the target through our cloud platform and mobile APP, which is suitable for such application scenarios as vehicle rental, fleet management, logistics transportation, etc.
![4G Asset GNSS Tracker](https://www.jimilab.com/wp-content/uploads/2022/09/LL301.png)
The LL301 is a 4G Cat 1 Asset GPS Tracker that allows for ultra-long standby time via 10,000mAh large-capacity battery and durable housing. Featuring the multiple positioning systems and indoor & outdoor signal coverage, the device also supports instant alerts of atypical events like device removal, vibration, etc. We also offer the users remote monitoring of the target through our cloud platform and mobile APP, which is suitable for such application scenarios as vehicle rental, fleet management, logistics transportation, etc.
![GPS & WiFi & LBS Positioning、GPS & BDS & LBS & Wi-Fi Positioning、GPS & LBS Positioning GPS & WiFi & LBS Positioning、GPS & BDS & LBS & Wi-Fi Positioning、GPS & LBS Positioning](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/GPS-WiFi-LBS-Positioning、GPS-BDS-LBS-Wi-Fi-Positioning、GPS-LBS-Positioning-px4vnqb1tysqirww7x87zer2d23ihdh058but5kkxs.png)
![LTE Cat M1_NB2 & GSM、LTE & GSM Network LTE Cat M1_NB2 & GSM、LTE & GSM Network](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/LTE-Cat-M1_NB2-GSM、LTE-GSM-Network-px4vpfek674dhfg5b5myzhc0z3qddp7k1mqf051zpc.png)
![6,000mAh Rechargeable Battery、10,000mAh Rechargeable Battery、2,500mAh Rechargeable Battery 6,000mAh Rechargeable Battery、10,000mAh Rechargeable Battery、2,500mAh Rechargeable Battery](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/6000mAh-Rechargeable-Battery、10000mAh-Rechargeable-Battery、2500mAh-Rechargeable-Battery-px4vmnro1rbzargvgykin6h609dgps80bxky4t5q0w.png)
![Remote Listen-in (VoLTE)、Remote Listen-in Remote Listen-in (VoLTE)、Remote Listen-in](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/Remote-Listen-in-VoLTE、Remote-Listen-in-px4vposy2jh8pj2hs9p8oeymwyg1io8vex99swo1z4.png)
![Multiple Alerts Multiple Alerts](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/Multiple-Alerts-1-px4vpha8jv6y4ndf06g84guy5vh3t3f0pw1dyoz7cw.png)
![Multiple Working Modes Multiple Working Modes](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/Multiple-Working-Modes-px4vpi82qp88g9c1uouuoymer9ch0sir20ovfyxt6o.png)
![Strong Magnetic Base Strong Magnetic Base](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/Strong-Magnetic-Base-px4vqsa61kza95h5dqrkl4zzv51ghyllkcnnyj1ips.png)
![Bluetooth Configuration、Bluetooth Accessory Compatibility (Optional) Bluetooth Configuration、Bluetooth Accessory Compatibility (Optional)](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/Bluetooth-Configuration、Bluetooth-Accessory-Compatibility-Optional-px4vnhui4gh5ma96lbkkuyvx0l97k3jf42ghhnx4hs.png)
GNSS | |
Positioning system | GPS+BDS+LBS |
Positioning accuracy | <2.5m CEP |
Tracking sensitivity | -165dBm |
Acquisition sensitivity | -148dBm |
TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
Cellular | |
Communication network | LTE/GSM |
Frequency | LL301-E LTE-FDD: B1/B3/B7/B8/B20/B28 GSM: 900/1800MHzLL301-L LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM: 850/900/1800/1900MHz |
Power | |
Battery | 10,000mAh/3.7V industrial-grade Li-Polymer battery |
Working modes | Mode 1: Regular GPS mode Mode 2: Tracking mode Mode 3: Power-saving mode |
Standby time | Up to 2 years in power-saving mode |
Interface | |
LED indication | 1 status indicator (Red), 4 battery indicators (Blue) |
SIM | Nano-SIM |
Tamper proof | Pressure-sensitive button |
Physical specification | |
Dimensions | 108.5 x 61.1 x 30.0mm |
Weight | 260g |
Operating environment | |
Operating temperature | –20℃ to +70℃ |
Operating humidity | 5%~95%, non-condensing |
IP rating | IP65 |
Feature | |
Sensors | 3-axis Accelerometer |
Bluetooth | Support Bluetooth 5.0 |
Scenarios | Low battery alert, Tamper alert, Vibrating Alert, Cover removal alert, Power off alert |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
