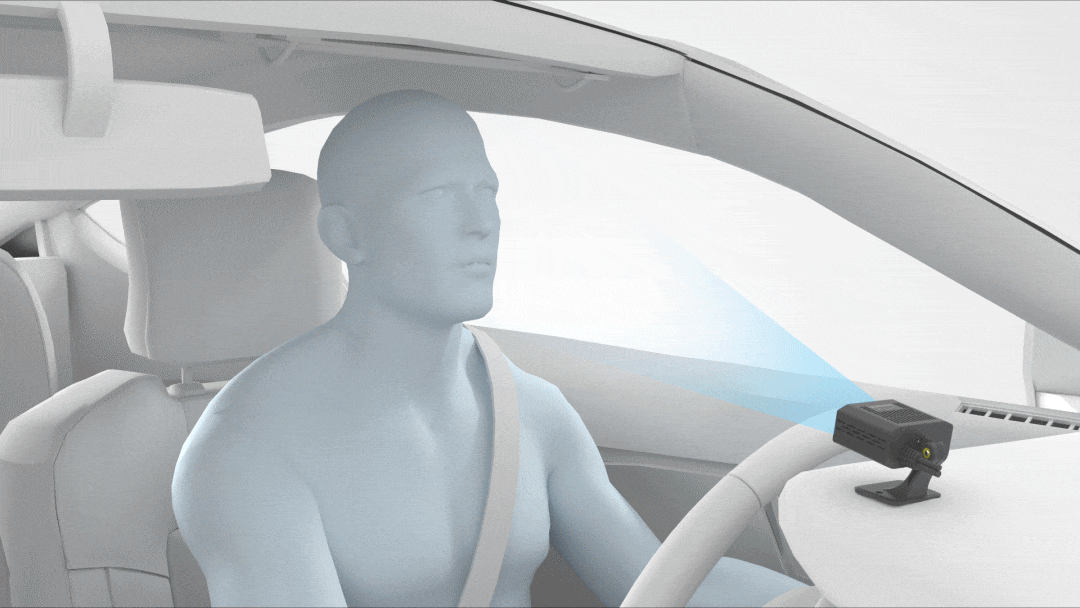

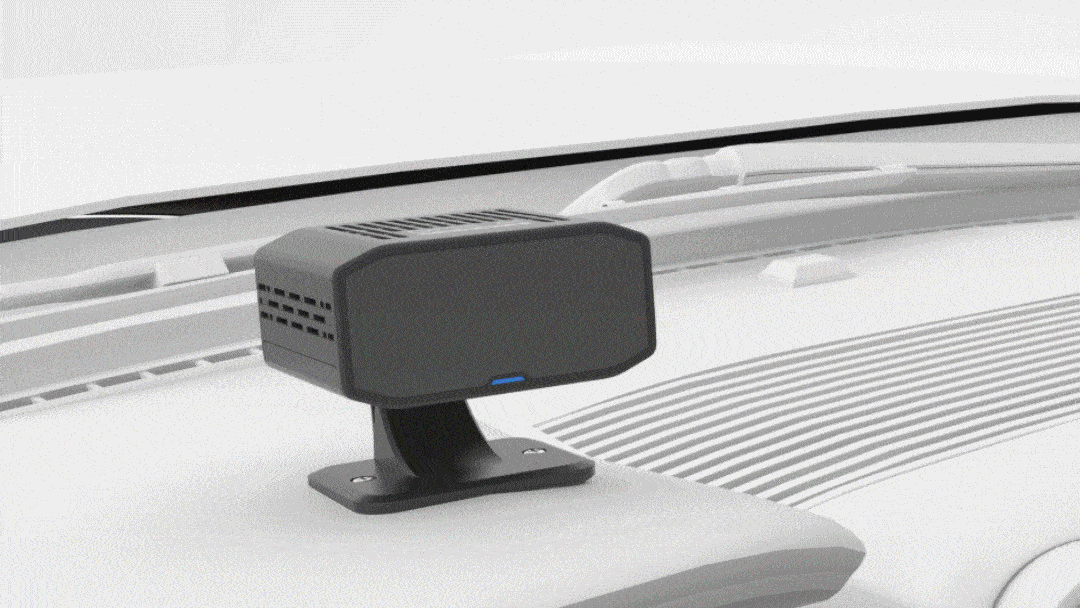

The JC170 is a compact DMS camera that utilizes multiple visual AI algorithms. It can monitor driver attentiveness, warn the driver with audible alerts if signs of fatigue or distraction are detected, and output alert information. When connected to a management device, the data collected by the JC170 can be uploaded to the cloud-based platform for evidentiary purposes. The JC170 offers a variety of features to address different scenarios that require long hours behind the wheel, minimizing fatigue- and distraction-related accidents and lowering the risk of operating asset loss.
![DMS Camera](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/JC170-1-pywfn9cuj7rr2wms8lrahdux69mcag7c0bgo6mru9s.png)
![JC170-2](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/JC170-2-pywfnb8iwvubq4k1xmkjmddud1d2puesokrn56p1xc.png)
![JC170-3](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/JC170-3-pywfnd47ajwwdchbmndsrcwrjt3t58m9cu2m3qm9kw.png)
![JC170-4](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/JC170-4-pywfnezvo7zh0kelbo71wcfoqkujkmtq13dl2ajh8g.png)
![JC170-5](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/JC170-5-pywfngvk1w21nsbv0p0b1bylxcla0116pcok0ugow0.png)
![DMS Camera](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/JC170-1-pywfn9cuj7rr2wms8lrahdux69mcag7c0bgo6mru9s.png)
![JC170-2](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/JC170-2-pywfnb8iwvubq4k1xmkjmddud1d2puesokrn56p1xc.png)
![JC170-3](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/JC170-3-pywfnd47ajwwdchbmndsrcwrjt3t58m9cu2m3qm9kw.png)
![JC170-4](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/JC170-4-pywfnezvo7zh0kelbo71wcfoqkujkmtq13dl2ajh8g.png)
![JC170-5](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/JC170-5-pywfngvk1w21nsbv0p0b1bylxcla0116pcok0ugow0.png)
The JC170 is a compact DMS camera that utilizes multiple visual AI algorithms. It can monitor driver attentiveness, warn the driver with audible alerts if signs of fatigue or distraction are detected, and output alert information. When connected to a management device, the data collected by the JC170 can be uploaded to the cloud-based platform for evidentiary purposes. The JC170 offers a variety of features to address different scenarios that require long hours behind the wheel, minimizing fatigue- and distraction-related accidents and lowering the risk of operating asset loss.
![](https://www.jimilab.com/wp-content/uploads/2022/12/gif-1-1.gif)
![](https://www.jimilab.com/wp-content/uploads/2022/12/gif-4-1.gif)
![](https://www.jimilab.com/wp-content/uploads/2022/12/gif-3-1.gif)
![](https://www.jimilab.com/wp-content/uploads/2022/09/JC170-compatibility.gif)
In addition to working in conjunction with Jimi IoT’s dashcams and trackers to suit various application scenarios. The serial ports enable it to be used together with dashcams and trackers of other brands as well.
Specification | |
Camera | |
Front Camera (Main) | 1280×720/15FPS/F2.4/Monochrome/56° (HFoV) |
Video Format | .mp4 |
Configuration | |
Speaker | Support |
Interface | Mirco USB*1, TTL*1 |
Memory Support | TF Card (Up to 128GB) |
LED Indication | Red (Power), Green (Monitoring), Blue (Align) |
Others | |
Power Supply | Power cable: B+/ACC/GND |
Operating Voltage | DC 9–30V |
Operating Temperature | –20°C to +70°C |
Storage Temperature | –30°C to +85°C |
Device Weight | 216g |
Device Dimension | 68*55*33mm |
Certifications | CE/FCC/RoHS |
* We reserve the right to the final interpretation for this product. All information is for reference only and is subject to change without further notice.
