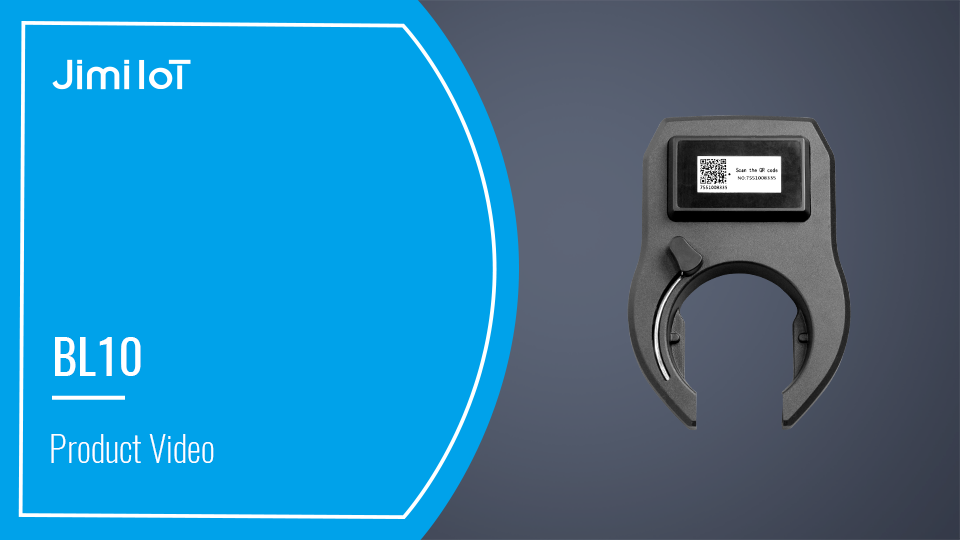

JPThe all new BL10 GPS Sharing Bike Lock is a cost-effective solution for securing shared bicycles. Developed by experienced innovators, this discreet lock helps keep the bike secure, track the bike’s location, and also allows the bike to be locked and unlocked via Bluetooth. Alerts can be triggered and sent to the operator if the bike leaves designated areas that you set. Monthly usage reports can be sent via email, platform or app to the operator, giving you crucial insight into the usage history of the bicycle. This next-generation device has been improved to have lower power consumption and longer battery life.
The all new BL10 GPS Sharing Bike Lock is a cost-effective solution for securing shared bicycles. Developed by experienced innovators, this discreet lock helps keep the bike secure, track the bike’s location, and also allows the bike to be locked and unlocked via Bluetooth. Alerts can be triggered and sent to the operator if the bike leaves designated areas that you set. Monthly usage reports can be sent via email, platform or app to the operator, giving you crucial insight into the usage history of the bicycle. This next-generation device has been improved to have lower power consumption and longer battery life.
FEATURES
SPECIFICATIONS
DOWNLOADS
GPS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
Quick & Simple Unlocking
You can unlock this device via bluetooth or by scanning QR code on a designated app.
Geo-fence
A virtual area set on platform by yourself, you'll be informed when the bike crossing its boundary.
Solar Powered
A solar panel converts sunlight into electricity that can be used to power this device.
Large 10,000mAh Battery
High capacity along with solar-powered energy ensures the electricity never drains out.
Vibrating Alert
You'll get notified if the vibration reaches threshold, such as drilling, hammering, or stealing bike.
Rugged and Durable Design
Rugged case and reliable fixing make it hard to damage this device without professional tools.
IPX5 Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
| GNSS | |
| Positioning system | GPS+LBS |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec |
| Avg. cold start ≤32sec | |
| Cellular | |
| Communication network | GSM |
| Frequency | Quad-band 850/900/1800/1900 MHz |
| Power | |
| Battery | 10,000mAh/3.7V industrial-grade Li-Polymer battery |
| Solar power | 6V/5W (Under solar illumination) |
| Working modes | Regular-upload mode |
| Standby time | Up to 40 days in locked state (without solar energy) |
| Interface | |
| LED indication | 1 status indicator (Blue) |
| SIM | Micro-SIM |
| Data storage | 64Mb |
| Physical specification | |
| Dimensions | 148.0 x 211.0 x 51.0 mm |
| Weight | 1117g |
| Operating environment | |
| Operating temperature | –20℃ to +60℃ |
| Operating humidity | 5%-95%, non-condensing |
| IP rating | IPX5 |
| Feature | |
| Bluetooth | Bluetooth 4.0 |
| iBeacon positioning accuracy | 1-10meters |
| Sensors | 3-axis Accelerometer |
| Scenarios | Audible recovery, Vibrating Alert, Low battery alert |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
APPLICATIONS
Bike Sharing
APPLICATIONS
Bike Sharing
