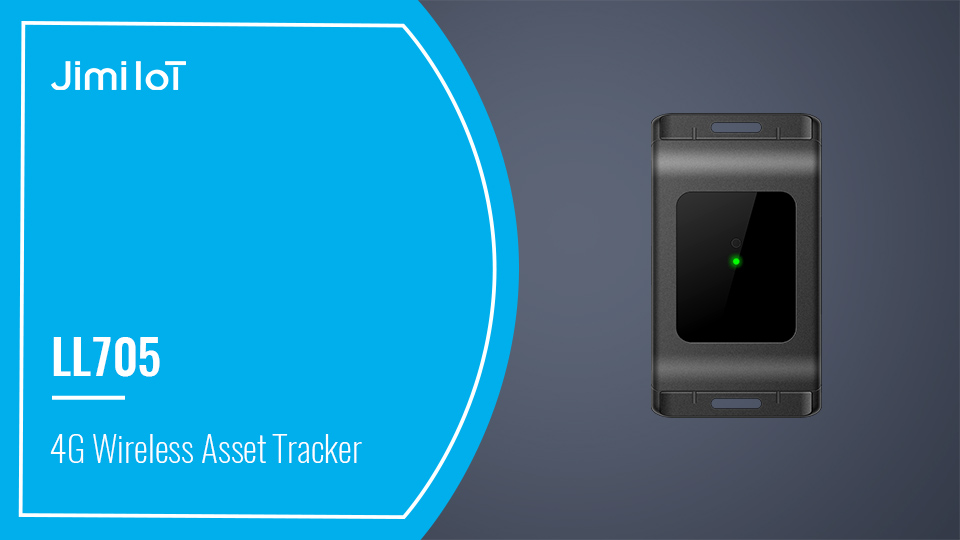

JPThe LL705 is a 4G wireless GPS tracker, engineered specifically for monitoring high-value assets such as construction and mining equipment. Its powerful 18,000mAh internal battery enables the device to operate up to a decade, given the most energy-efficient settings. This makes it ideal for scenarios needing extended service life and infrequent location updates. The LL705 can accurately identify the location of your assets through GPS+Beidou satellite systems, cell towers, or Bluetooth signals. Additionally, it provides installation flexibility, allowing customization with mounting accessories of your choice.
The LL705 is a 4G wireless GPS tracker, engineered specifically for monitoring high-value assets such as construction and mining equipment. Its powerful 18,000mAh internal battery enables the device to operate up to a decade, given the most energy-efficient settings. This makes it ideal for scenarios needing extended service life and infrequent location updates. The LL705 can accurately identify the location of your assets through GPS+Beidou satellite systems, cell towers, or Bluetooth signals. Additionally, it provides installation flexibility, allowing customization with mounting accessories of your choice.
FEATURES
SPECIFICATIONS
DOWNLOADS
LTE Cat 1 Network
Stable communication via IoT-specific 4G LTE networks, with 2G fallback
GPS & BDS & LBS & BLE Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
18,000mAh Battery
High-capacity battery supports the device to operate as long as 10 years.
IP67 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Tamper Alert
Receive a tamper alert when the light sensor of the device detects any change in ambient light, which can be disabled via a command.
Low Battery Alert
Users'll be alerted when the remaining battery power of the device falls below 20%.
Flexible Installation
The device can be installed via the standard configuration - screws or via an optional configuration - the inbuilt magnet, 3M double-sided adhesive tape, or cable ties.
Multiple Working Modes
Configurable working modes according to your actual demands.
| GNSS | |
| Positioning system | GPS+BDS+LBS |
| Frequency | L1 |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | –165dBm |
| Acquisition sensitivity | –148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
| Cellular | |
| Communication network | LTE Cat 1/GSM |
| Frequency | LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B34/B40/B41 GSM: 850/900/1800/1900MHz |
| Power | |
| Battery | 18,000mAh Li-SOCl2 battery string |
| Working modes | Regular GPS mode
Tracking mode Phase-based mode Alarm-based mode |
| Standby time | 10 years (one update per day) |
| Interface | |
| LED indication | Power (yellow) |
| SIM | Nano-SIM |
| Physical specification | |
| Dimensions | 120.0 x 68.0 x 43.5mm |
| Weight | 289.0g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| Operating humidity | 5%～95%, non-condensing |
| IP rating | IP67 |
| Feature | |
| Sensors | Light sensor, Accelerometer |
| Scenarios | Low battery alert, Tamper alert, Vibrating alert (optional) |
| FOTA | Yes |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
APPLICATIONS
Construction Equipment Management
Mining Equipment Management
Trailer Tracking
APPLICATIONS
Construction Equipment Management
Mining Equipment Management
Trailer Tracking
